OrangeA 3 in 1 Plasma Cutter CT520D Welding Machine 220V 50A Tig Arc Mma Welder


Plasma Cutter CT520D 50 A Tig Arc Mma Welder 220V NEW 2016

High arc energy

Less pollution and burning

Enrich welding material

Seldom does the welding deformation

Air cooling, thermostatic protection for a longer life span

Flexible TIG torch with long and short back caps for welding in tight places

Strong and extremely reliable - ready for Industrial/Commercial and any other application

Multi-function of TIG and MMA welder as well as air plasma cutting

ARC column slender, strong penetrability

Advanced MOSFET inverter technology, high working efficiency, DC output

Compact structure, convenient to carry, reliable and durable, easy for maintenance

Pre-flow time: to adjust the time for air/gas blow out of torch before welding

Current: for welding/cutting current

Down slope: would help to weld stainless steel

Post gas/air time: to adjust the time for ai r/gas blow out of torch after welding

Certification: CE, CCC, CSA and ISO-9001 certification

Specifications

Input Voltages: 220V, 50Hz

Power Efficiency: 85%

Dimensions with Handle: 17x8x14inch /432x203 x356mm

Weight: 32lbs ( 14.5kg)

Cable Length: 6' (1.8m)

Gas Supply : Clean, dry, oil-free air

Recommended Gas Inlet Flow Rate/Pressure: 3.6scfm @  65psi, 80L/min

Cutting Materials: Mild steel, stainless steel, aluminum, etc.

Maximum Rated Cutting Thickness: 1/2" (12.7mm)

Power Factor: 0.93

Insulation Class: F

Protection Class: Ip21

Duty Cycle: 60%

Welding Thickness: 0.8--3mm(0.03-0.12 inch), 1-10mm(0.04-0.40inch)

Dimensions: 55x33x44cm(22x13x17 inch)

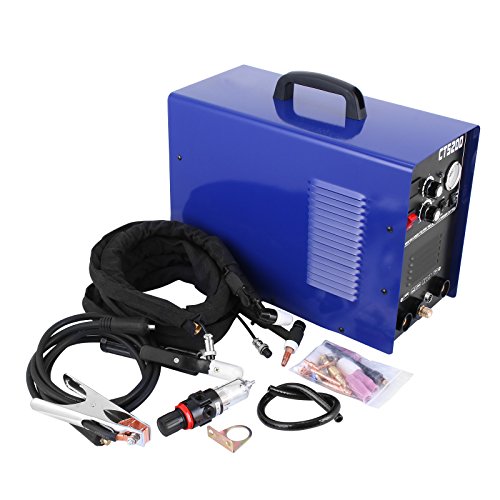

Package Content

1 x Earth Clamp

1 x Holder

1 x Cutting torch

1 x Tig torch

3 sets consumables

Plasma cutter input voltages: 220 V, 50Hz; Power efficiency: 85%
Welding machine recommended gas i nlet flow rate/pressure: 3.6scfm @  65psi, 80L/min
Multi-function of TIG and MMA welder as well as air plasma cutting
It is able to cut various types of metal up to 1/2" with the 50A plasma cutting function
This industrial grade welder can be widely used in welding and cutting carbon steel, stainless steel, alloy steel, and other nonferrous metals
